Durable. Efficient. Architectural.

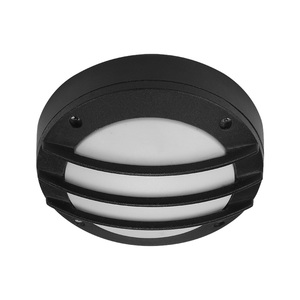

The B8 Series offers both aesthetics and performance. Its IP65 rating ensures full protection against dust and water jets, designed with a decorative grille front and constructed from die-cast aluminum and impact-resistant polycarbonate. Ideal for exterior wall or ceiling applications in residential, commercial, and industrial settings.
Specifications
| Feature | Details |
|---|
| Product Series | B8 Series – Decorative Louver LED Bulkhead Light |
| Mounting Type | Surface mounted – wall or ceiling |
| Housing Material | Die-cast aluminum + polycarbonate diffuser |
| Design | Grill/louver front cover for anti-glare and visual appeal |
| Waterproof Rating | IP65 – Suitable for wet environments |
| LED Chip | San’an / Epistar SMD LED |
| Luminous Efficacy | 85–100 lm/W |
| Beam Angle | 120° |
| CCT (Color Temp) | 2700K / 3000K / 4000K / 6000K |
| CRI (Color Rendering) | >80 / >90 / >97 (optional) |
| Lifespan | >50,000 hours (L70) |
| Power Options | 7W / 15W / 20W / 30W |
| Voltage Input | AC 100–277V, 50/60Hz |
| Dimming Option | Available on request (0–10V or Triac) |
| Emergency Backup | Optional (customizable) |
| Motion Sensor | Optional (Microwave sensor) |
| Certifications | CE, RoHS, |
| Finish Color | Black (standard); white/grey optional (MOQ) |
Available Models and Dimensions
| Model Code | Power | Dimensions (mm) | Beam Angle | CCT Range | CRI |
|---|
| HB145-B8-G | 7W | Ø145 × H65 | 120° | 2700K–6000K | 80/90/97 |
| HB220-B8-G | 15W | Ø220 × H75 | 120° | 2700K–6000K | 80/90/97 |
| HB275-B8-G | 20W | Ø275 × H85 | 120° | 2700K–6000K | 80/90/97 |
| HB300-B8-G | 30W | Ø300 × H85 | 120° | 2700K–6000K | 80/90/97 |
