Durable. Efficient. Architectural.
The B7 Series LED Bulkhead Light is a robust and versatile solution for wall and ceiling mounting in both indoor and outdoor environments. Designed with IP65 protection and die-cast aluminum construction, the B7 Series offers long-lasting performance, even in challenging weather conditions.
Specification Overview
| Item | Details |
|---|
| Product Name | B7 LED Bulkhead Light |
| Mounting Type | Wall-mounted / Ceiling-mounted (Surface installation) |

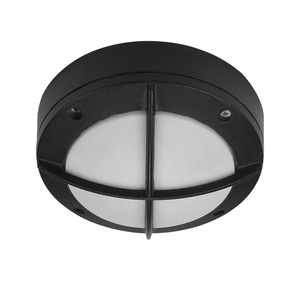

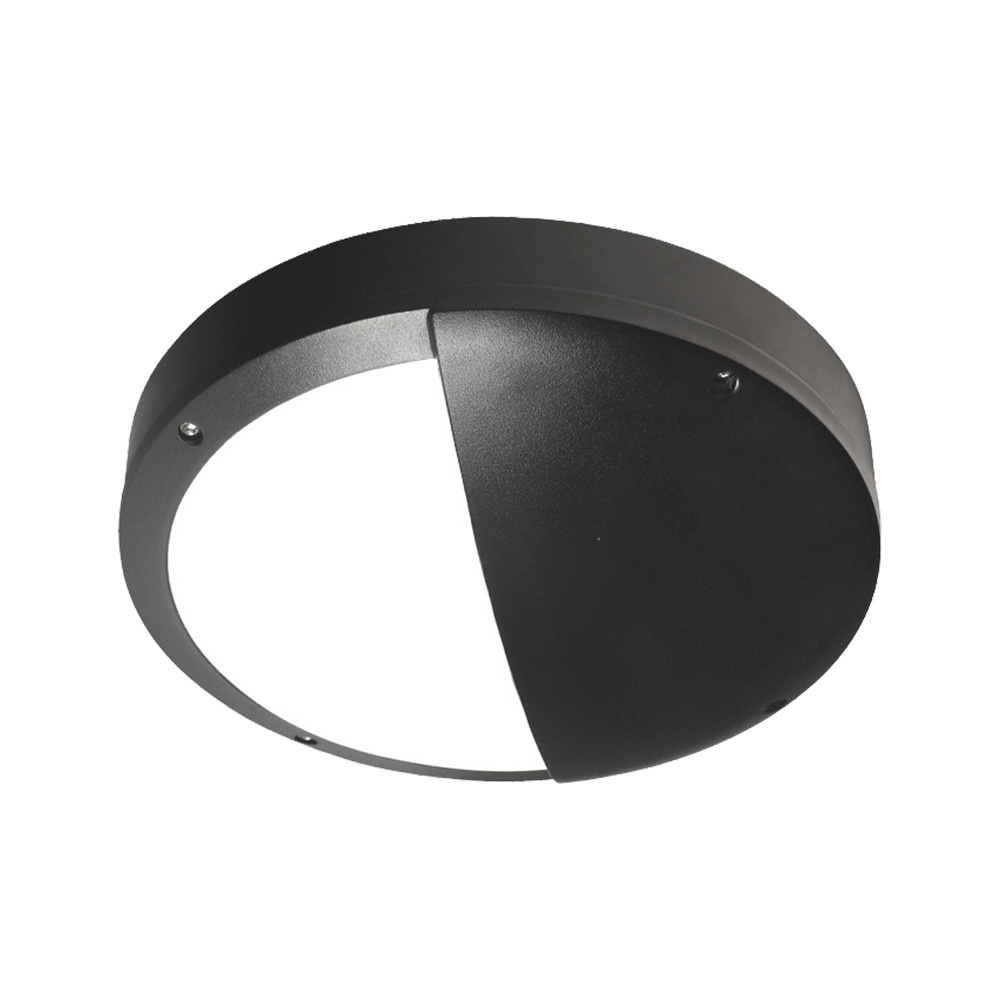

| Style Options | C (Cross grille), G (Full grille), H (Half-shielded) |
| Material | Die-cast Aluminum + PC Diffuser |
| IP Rating | IP65 (Dust-tight & water-jet protected) |
| Wattage Range | 7W / 15W / 20W / 30W / 40W |
| Luminous Efficacy | 85–100 lm/W |
| Lumen Output | Up to 4000 lm (depending on wattage) |
| CCT Options | 2700K / 3000K / 4000K / 6000K |
| Beam Angle | 120° |
| CRI (Color Rendering) | 80 / 90 / 97 |
| LED Chip | Epistar / San’an SMD |
| Driver | Built-in Constant Current Driver |
| Dimming Options | Optional on request |
| Sensor Options | Microwave Sensor (optional) |
| Emergency Function | Available on request |
| Finish | Standard black (Custom colors available for bulk orders) |
| Certifications | CE / RoHS / (others on request) |
| Warranty | 3 or 5 years |
Model Variants
| Order Code | Watt | Size (mm) | CCT Range | CRI | Beam Angle |
|---|
| HB145-B7-C/G/H | 7W | Ø145×H65 mm | 2700K–6000K | 80 / 90 / 97 | 120° |
| HB220-B7-C/G/H | 15W | Ø220×H75 mm | 2700K–6000K | 80 / 90 / 97 | 120° |
| HB275-B7-C/G/H | 20W | Ø275×H85 mm | 2700K–6000K | 80 / 90 / 97 | 120° |
| HB300-B7-C/G/H | 30W | Ø300×H90 mm | 2700K–6000K | 80 / 90 / 97 | 120° |
| HB350-B7-C/G/H | 40W | Ø350×H95 mm | 2700K–6000K | 80 / 90 / 97 | 120° |
Typical Applications
| Area | Use Case |
|---|
| Residential Buildings | Stairwells, corridors, balconies |
| Commercial Projects | Entrances, walkways, service areas |
| Public Infrastructure | Tunnels, underpasses, public toilets |
| Industrial Zones | Factories, loading bays, utility rooms |
| Coastal Areas | Salt-resistant lighting for exterior installations |
