Waterproof | Durable | Versatile

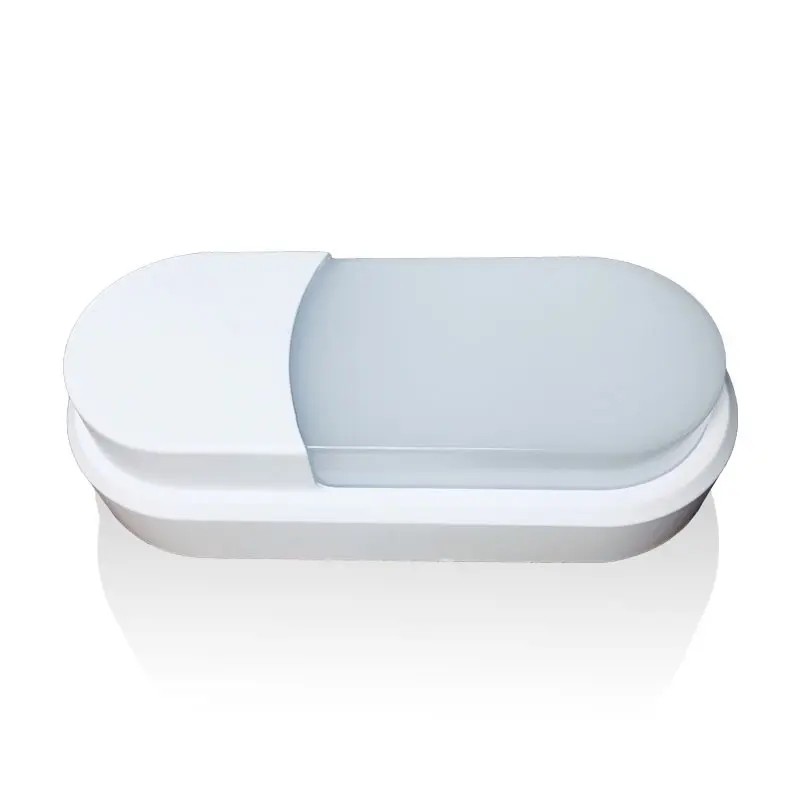

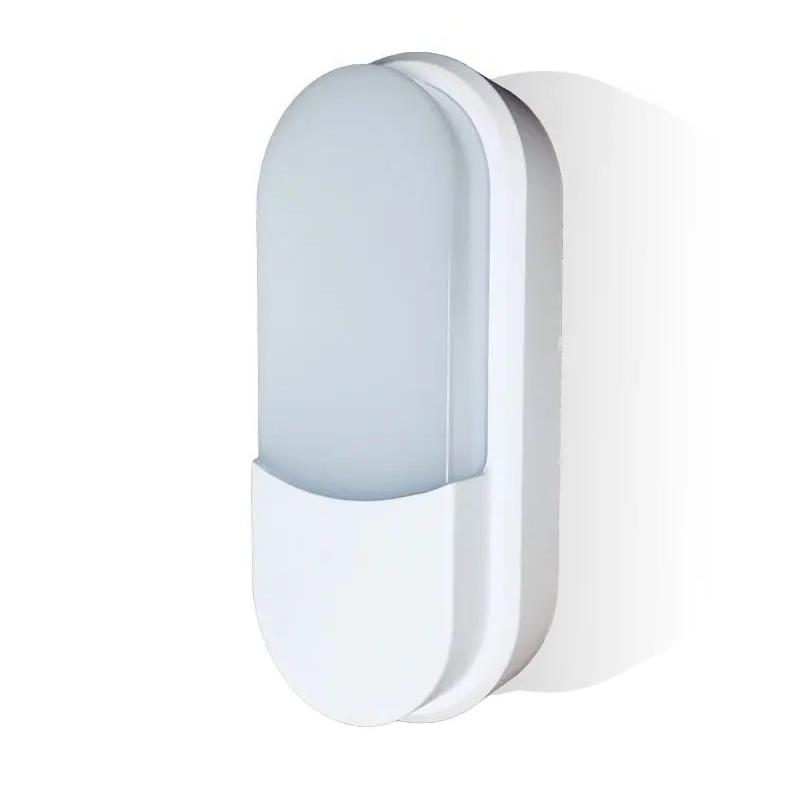

Upgrade your outdoor and indoor lighting with the B1 LED Bulkhead Light Series. Designed for reliability and performance, the B1 models feature a sturdy PC + ABS housing and high-efficiency SMD chips (Epistar/San’an), delivering up to 100lm/W with uniform 120° beam coverage. Ideal for corridors, balconies, stairwells, and building exteriors.
| Feature | Specification |
|---|
| Product Name | B1 LED Bulkhead Light (B1-D / B1-DF Series) |
| LED Chip | Epistar / San’an SMD |
| Luminous Efficiency | 85–100 lm/W |
| Wattage Options | 12W / 15W |
| Beam Angle | 120° |
| Color Temperature (CCT) | 2700K – 6000K |
| Color Rendering Index | CRI ≥ 80 / 90 / 97 |
| Material | High-quality PC + ABS |
| Ingress Protection | IP65 (dust and water resistant) |
| Mounting Method | Surface-mounted (Wall or Ceiling) |

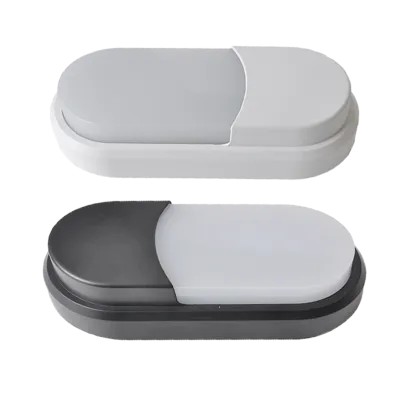

| Housing Colors | Black / White / Grey |
| Application Areas | Outdoor walls, stairwells, corridors, balconies, building facades |
| Lifespan | 25,000–30,000 hours |
Model Specifications
| Order Code | Power | Size (mm) | CCT | CRI |
|---|
| HB195-B1-D | 12W | L195×W95×H60 | 2700K–6000K | 80/90/97 |
| HB225-B1-D | 15W | L225×W100×H55 | 2700K–6000K | 80/90/97 |
| HB195-B1-DF | 12W | L195×W95×H60 | 2700K–6000K | 80/90/97 |
| HB225-B1-DF | 15W | L225×W100×H55 | 2700K–6000K | 80/90/97 |
Application Areas
