Product Detail

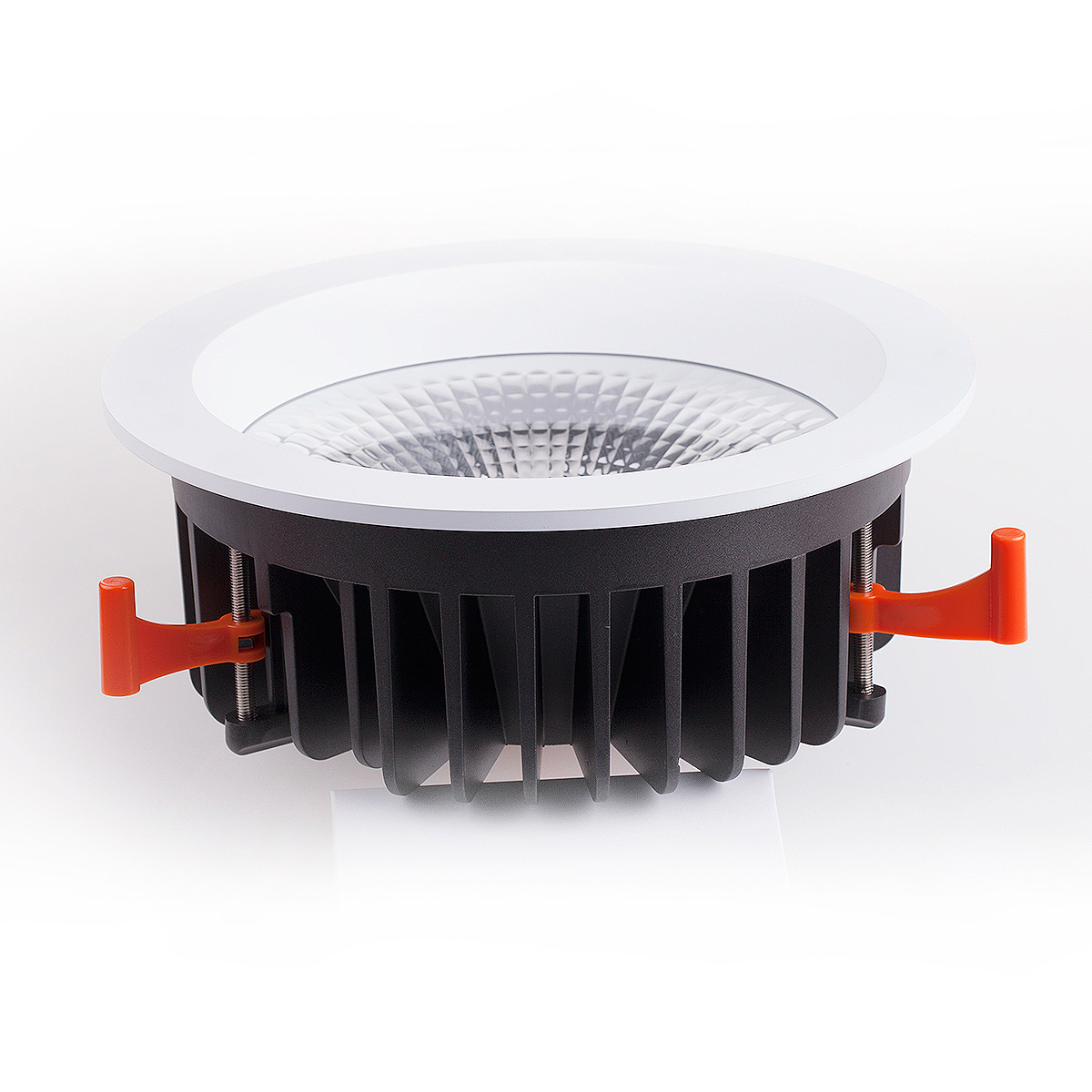

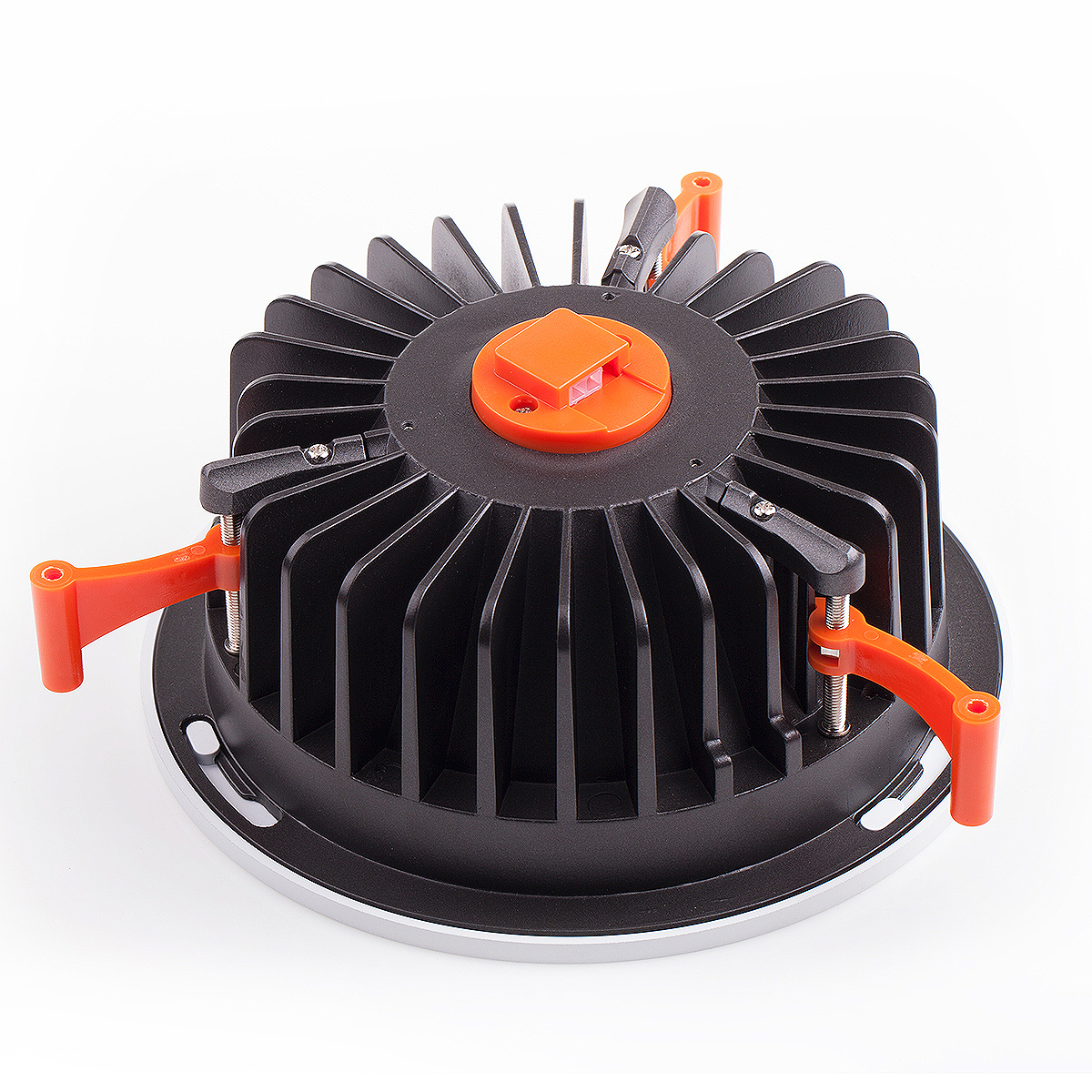

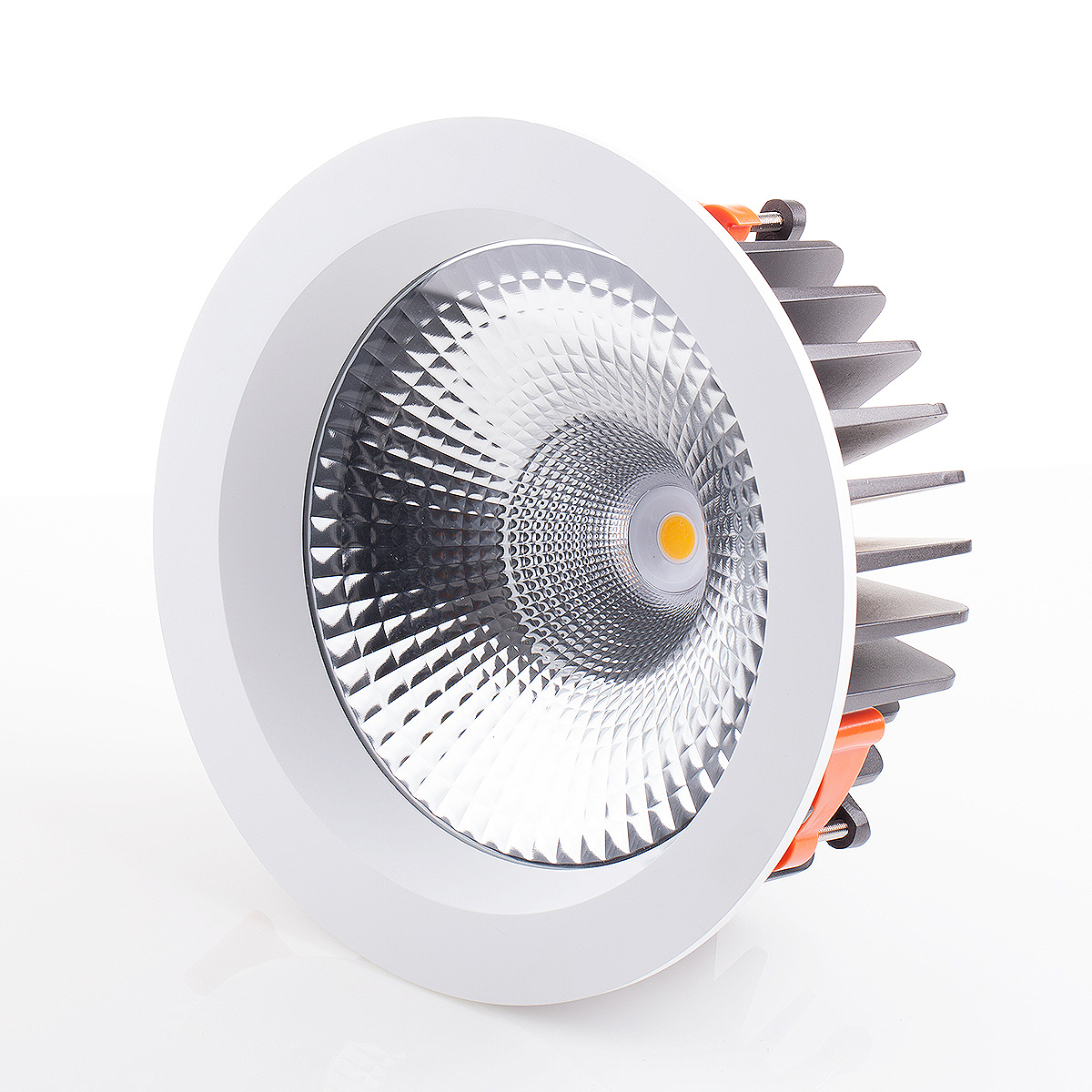

V1-R  Downlights 6/8inch 20W-40W Reflector


|
Model Code : HD06/08-V1-R
 Reservation Now
Spec


Description

The V1-R Downlights with reflector bring advanced LED technology and modern aesthetics to your residential and commercial spaces. Designed for 6-inch and 8-inch installations,

20W-40W recessed LED lights deliver high-lumen output, ensuring consistent and bright illumination for diverse applications.

With a sleek, anti-glare design, the V1-R Downlights create a comfortable, soft lighting environment, reducing eye strain and enhancing the ambiance of any room. Their dimmable feature allows you to adjust the brightness to suit your needs, whether you're creating a cozy atmosphere at home or bright task lighting in a professional space.

Built with energy efficiency in mind, these LED downlights consume minimal power while providing long-lasting performance, making them a cost-effective and environmentally friendly choice. Ideal for offices, retail spaces, hotels, and homes, the V1-R Downlights are engineered to meet European quality standards and offer reliable, durable lighting solutions.

Easy to install and maintain, these downlights are available in various IP ratings, making them suitable for diverse environments, including kitchens, bathrooms, and commercial spaces.


Technical Specifications


FeatureDetails
Light Source

Samsung LED / Sanan SMD; Citizen COB /

Bridgelux COB / Philips COB

Lumen Efficiency90-105 lm/W
Wattage Options7W / 10W / 15W / 20W / 25W / 30W / 40W
Beam Angle60° / 90°
CCT2700K – 6000K
CRI80 / 90
MaterialDie-cast Aluminium
Cut-out SizesØ95, Ø125, Ø170, Ø205 mm
DimensionsD109×H52, D145×H71, D190×H86, D228×H100
IP RatingIP20, IP44
UGR RatingUGR < 22
Dimming OptionsTRIAC, 0-10V dimmable
CertificationCE, RoHS, LED Quality OK, IK08
Lifespan>50,000 hours
Warranty3-5 years



Selling Points


1.Different clips design;


2.Citizen/Philips chip,better lumen output;


3.Wide cutout range ,perfect for replacement project;
