Product Detail

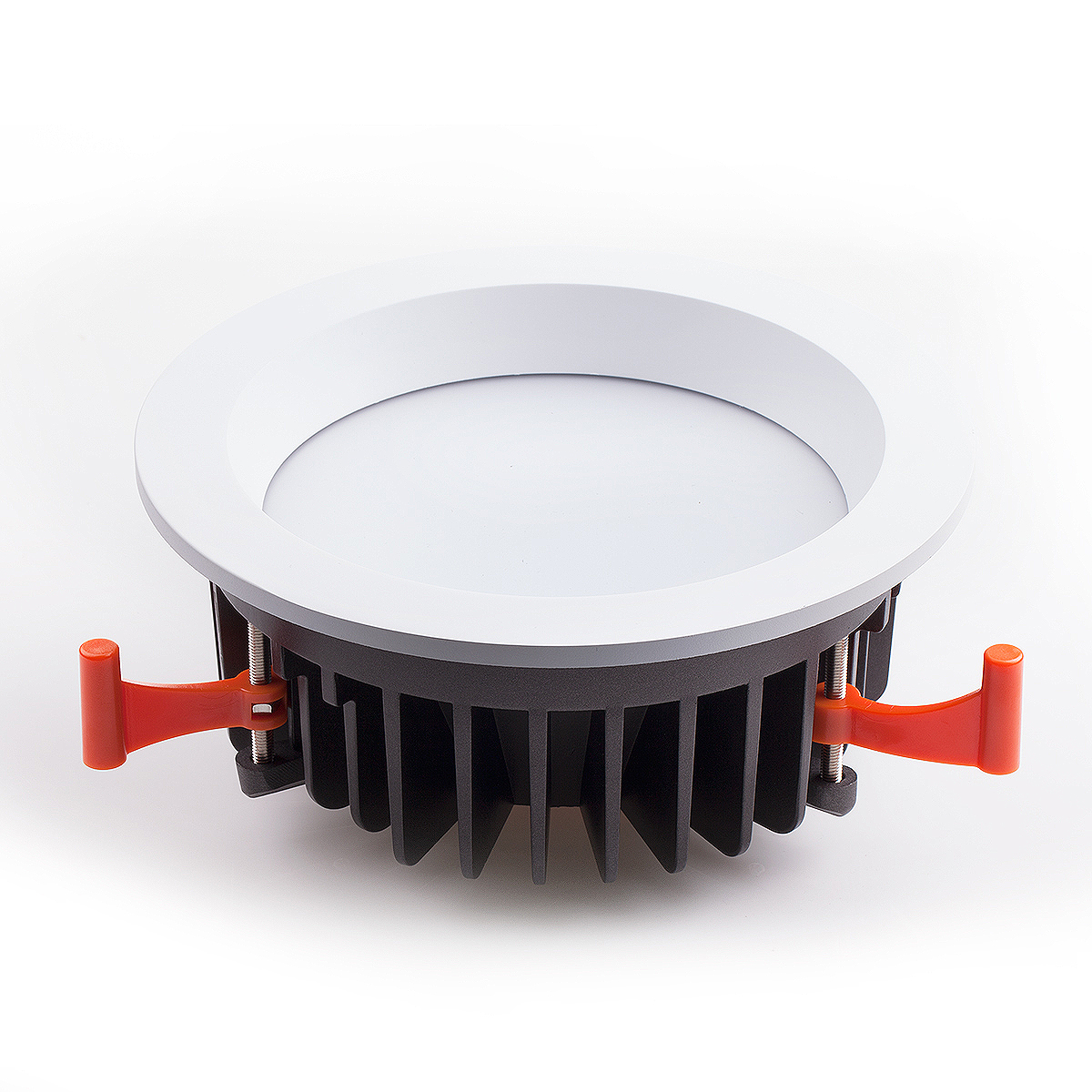

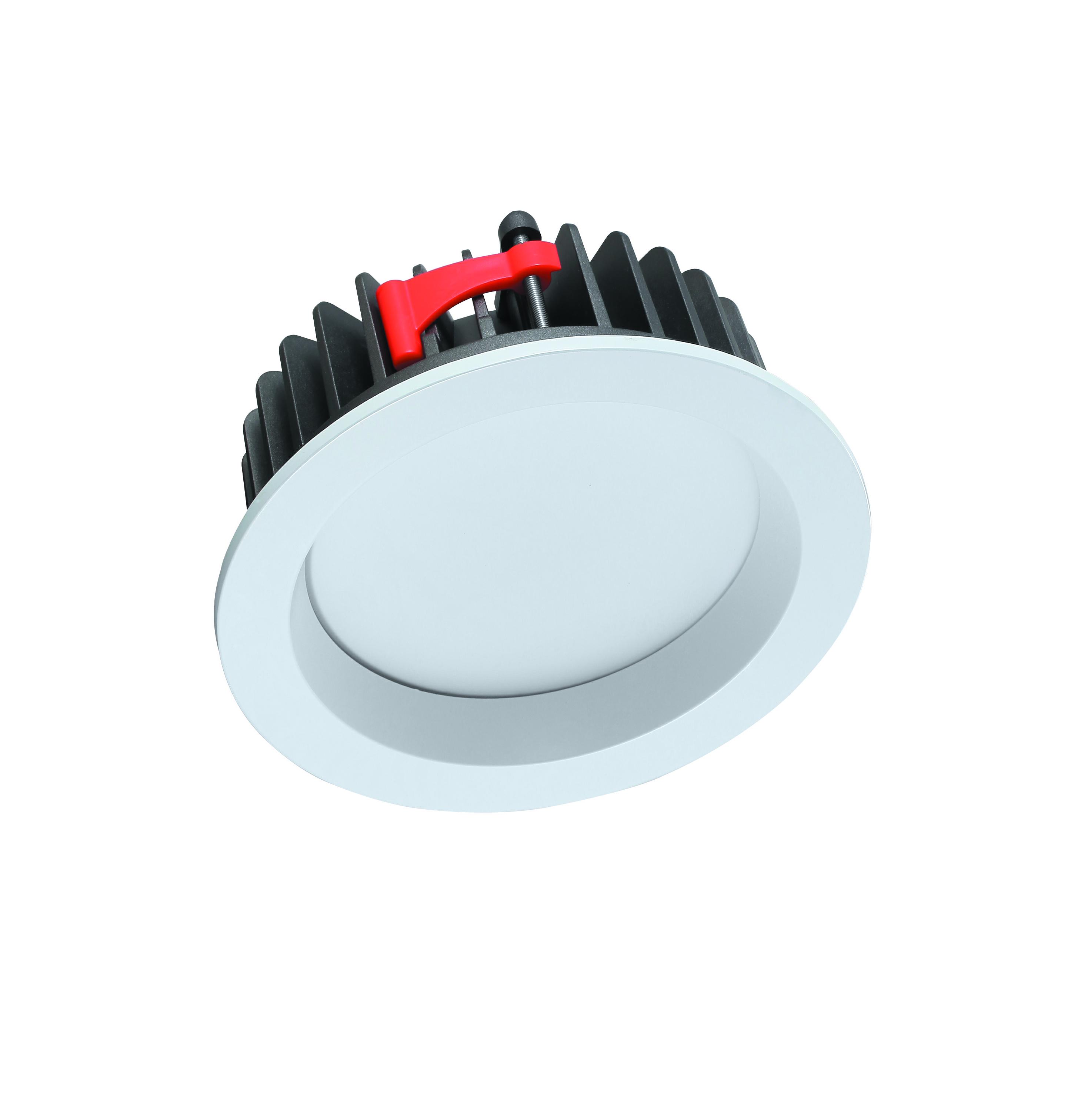

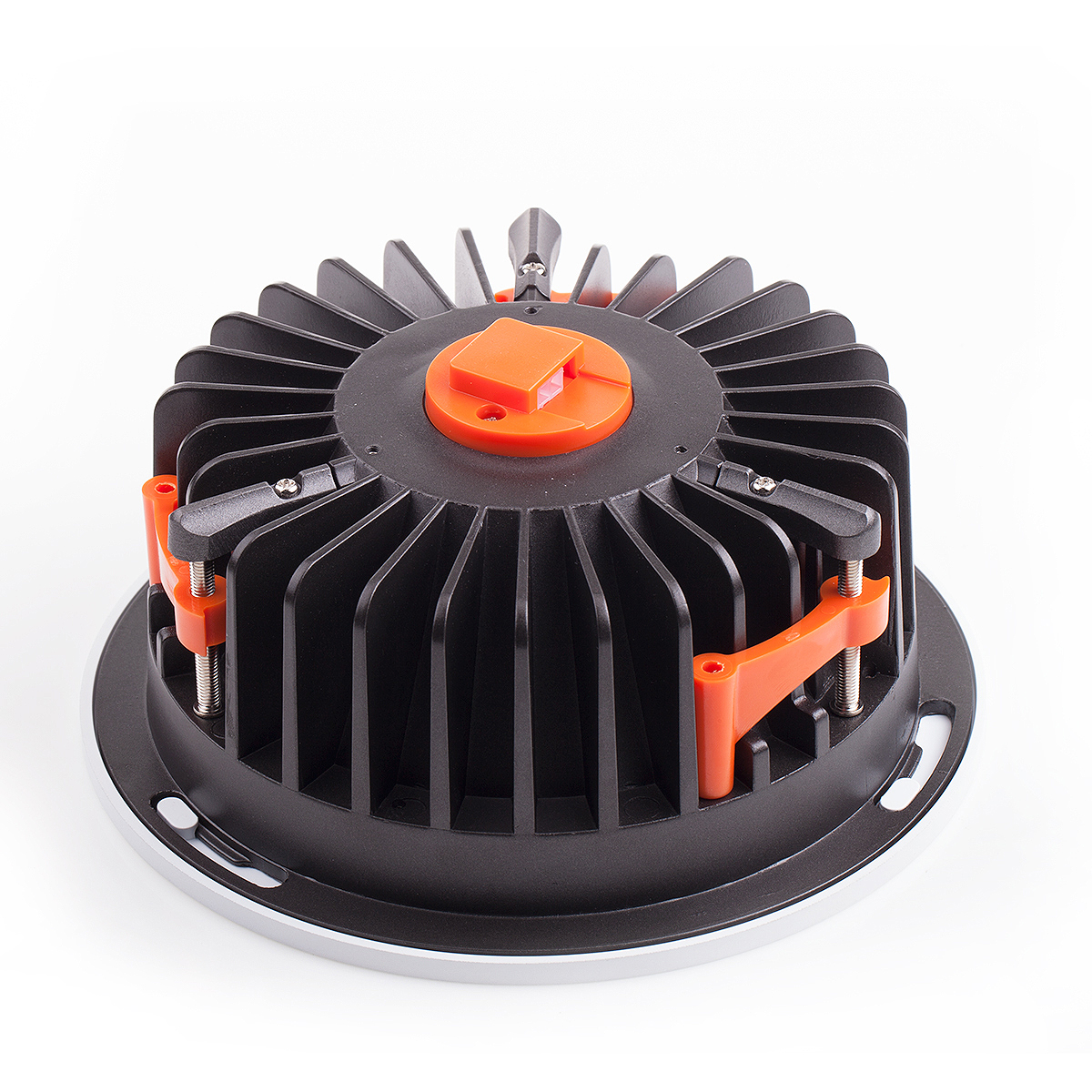

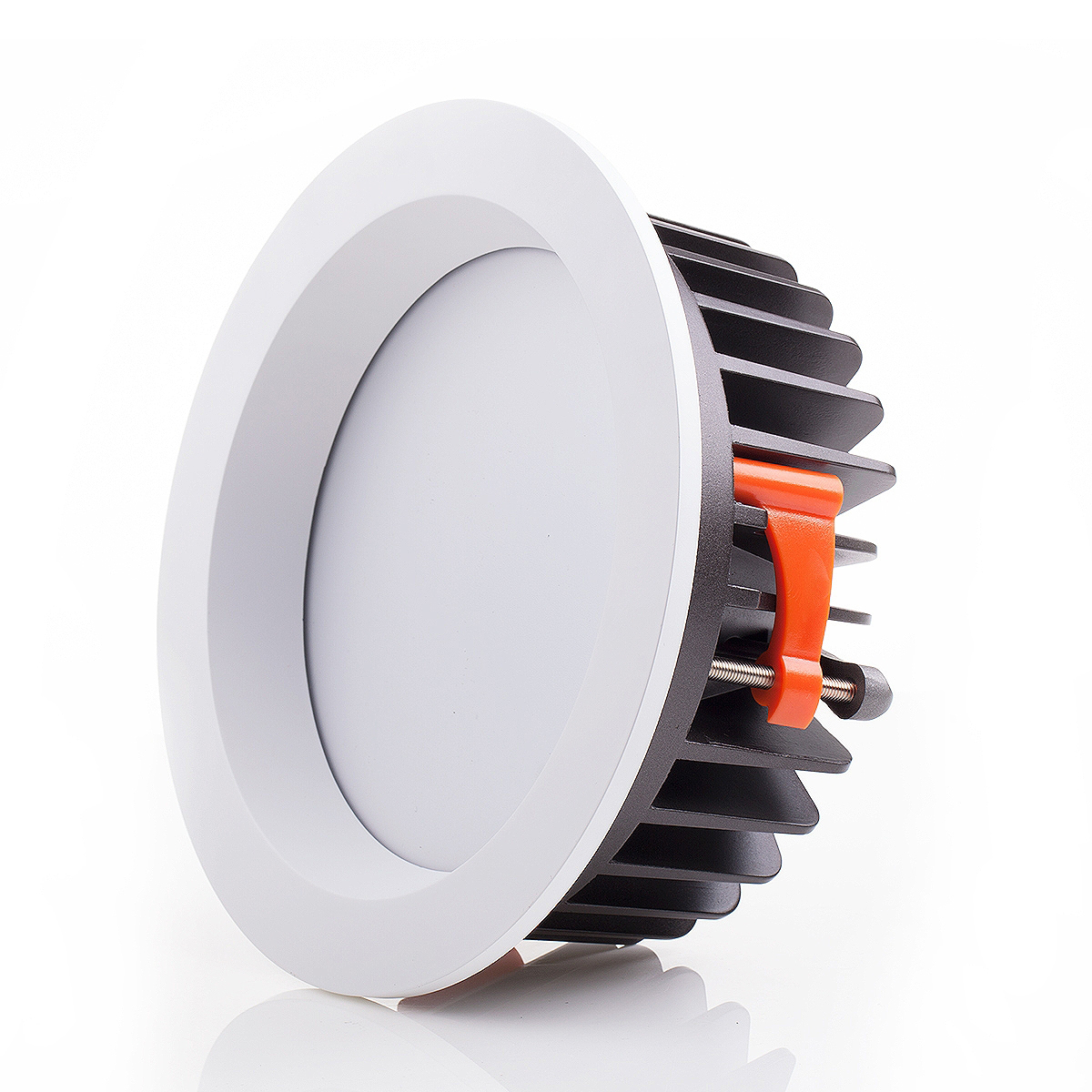

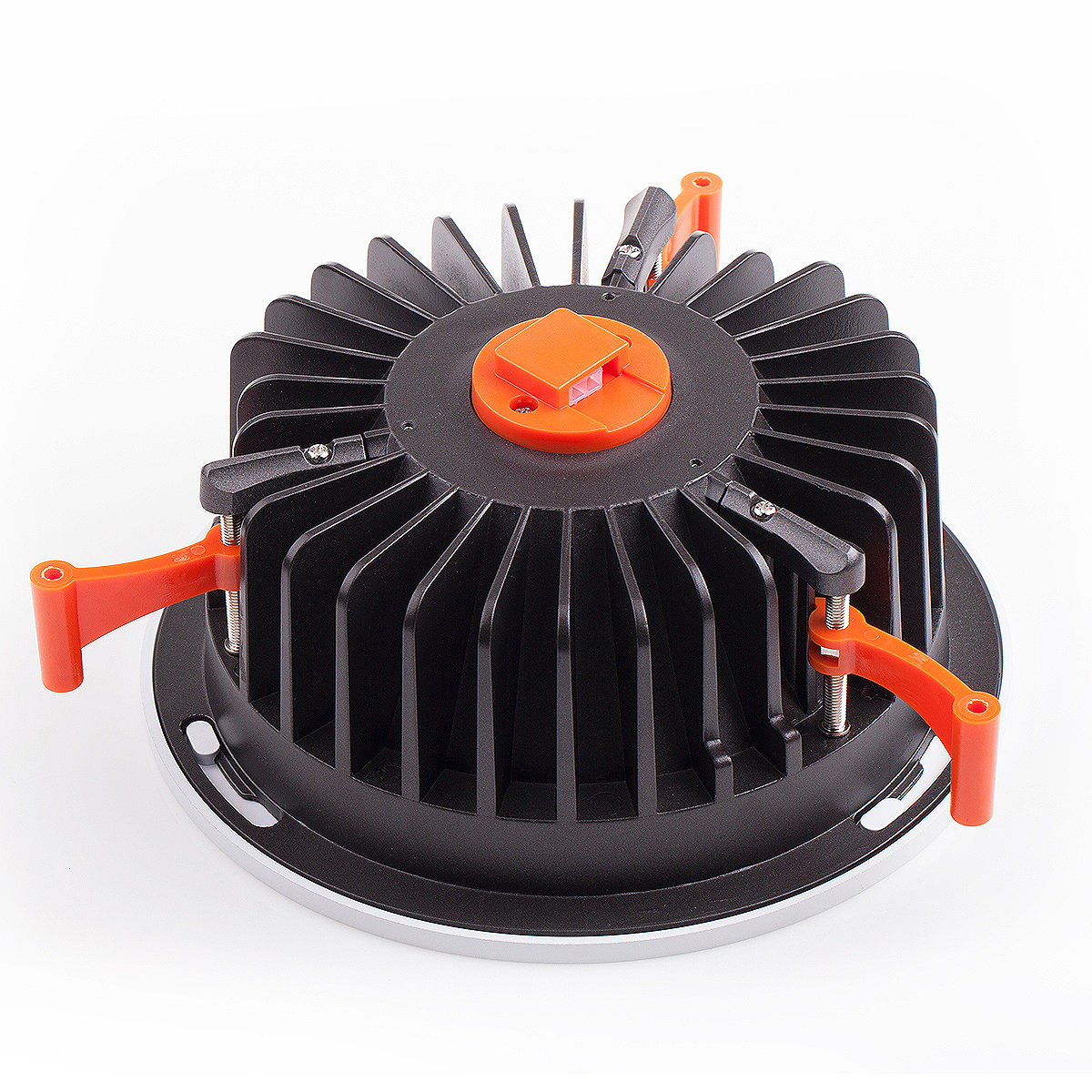

V1-D Downlights 6/8inch 20W-40W Diffuser


|
Model Code : HD06/08-V1-D
 Reservation Now
Spec


Description

Enhance your spaces with the V1-D Downlights, featuring a 6-inch and 8-inch design with 20W-40W LED performance. These recessed downlights come equipped with a high-quality diffuser, ensuring soft, anti-glare illumination that creates a comfortable and inviting environment.

Designed for both residential and commercial applications, the V1-D Downlights combine style and functionality. The integrated diffuser evenly spreads light across the space, eliminating harsh shadows and providing a premium lighting experience suitable for living rooms, offices, retail stores, and more.

The energy-efficient downlights are crafted with advanced LED technology, offering low power consumption and long-lasting durability. The dimmable feature allows for customizable brightness, making them adaptable to various settings, from cozy home lighting to bright task environments.

Meeting European quality and safety standards, the V1-D Downlights are easy to install and maintain. Available with IP-rated options, they are suitable for a range of environments, including kitchens and bathrooms.


Technical Specifications


FeatureDetails
Light Source

Samsung LED / Sanan SMD; Citizen COB /

Bridgelux COB / Philips COB

Lumen Efficiency90-105 lm/W
Wattage Options7W / 10W / 15W / 20W / 25W / 30W / 40W
Beam Angle60° / 90°
CCT2700K – 6000K
CRI80 / 90
MaterialDie-cast Aluminium
Cut-out SizesØ95, Ø125, Ø170, Ø205 mm
DimensionsD109×H52, D145×H71, D190×H86, D228×H100
IP RatingIP20, IP44
UGR RatingUGR < 22
Dimming OptionsTRIAC, 0-10V dimmable
CertificationCE, RoHS, LED Quality OK, IK08
Lifespan>50,000 hours
Warranty3-5 years



Selling Points


1.Different clips design;


2.Samsung chip,better lumen output;


3.Wide cutout range ,perfect for replacement project;


4.CCT Tunable available 3000K/4000K/6000K.
